The DEVA Broadcast DB7002 Professional FM/DAB/DAB+ Monitoring Receiver is a revolutionary solution that combines in a single, high-precision tool the most important functionalities of two separate types of product. To achieve that, our engineers have equipped this model with two independent tuners - one for FM and one for DAB/DAB+, allowing for the device to perform both FM and DAB/DAB+ monitoring in parallel. It provides detailed and accurate measurement of all of the most important signal parameters and also boasts two loggers with 24 channels apiece for FM and DAB/DAB+. The recorded information is stored in log files on an SD card for easy future analysis and can easily be downloaded via a standard FTP client.
As a product that incorporates DAB/DAB+ monitoring capabilities, DB7002 fully meets the ETSI EN 300 401 DAB standard and offers support for Program Associated Data (PAD), as well as all standard bitrates and VBR, and automatically displays live metadata.
As an FM monitoring tool, DB7002 also provides powerful signal processing capabilities through sophisticated DSP algorithms and offers a Loudness Meter, which allows for measurements to be shown as defined by ITU BS.1770-4 and EBU R128 recommendations.
To make sure the transmission is not interrupted, there are local alarm options and online notifications via rear-panel alarm GPOs, E-mail and SNMP in case there is audio loss or a change in the signal.

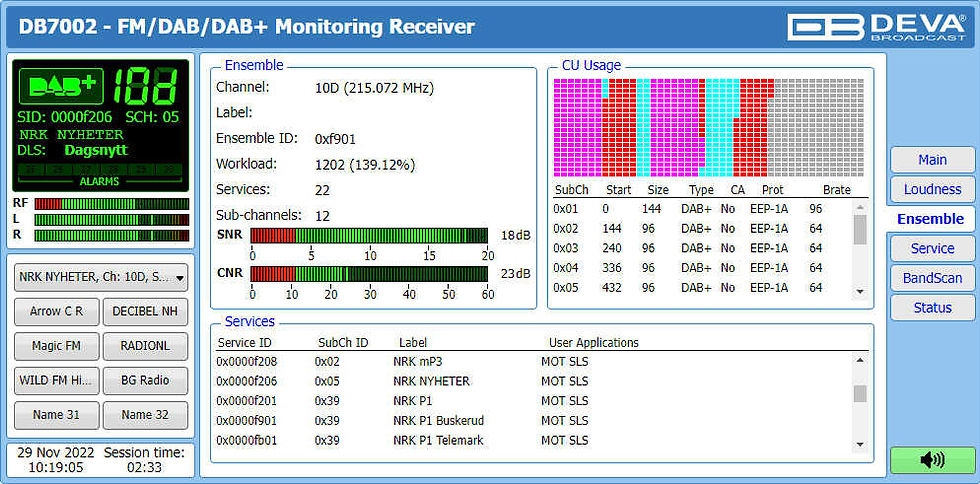

DB7002 can also be managed without effort. It is easy to program via the front-panel menu or remotely through your PC, tablet or smart phone via a standard web browser; iOS and Android devices are also supported. The high-resolution OLED graphical display and the ultra-bright LED bar graph indicators allow for easy reading of the main signal parameters. A user-friendly front panel menu in addition to the set of four soft buttons provides easy navigation and quick access to each function.
DB7002 is definitely a must-have. Its two independent tuners set it apart from any other product, while its effectiveness and precision make it the perfect monitoring tool.
DEVA Broadcast DB7002 Professional FM/DAB/DAB+ Monitoring Receiver
- FM Band 87.1 - 108 MHz Basic Spectrum Analyzer
- Up to 100 dBµV direct RF Antenna Input
- Selectable wide range IF filter bandwidth
- Fully DSP-based core
- Built-in Loudness Analyzer
- Bright bar graph LED metering of the RF and Audio Levels
- Wide angle, easy to read OLED display
- Very Intuitive Navigational Menu
- Levels measurement with data history
- Selectable De-emphasis
- Built-in Stereo Decoder
- RDS and RBDS decoder with BER meter
- Built-in 24 channel FM Data logger
- Real Time Audio Program Streaming
- DAB/DAB+ compliant receiver
- Support for Program Associated Data (PAD)
- Detailed DAB component information
- High-end digital tuner
- Built-in 24 channel DAB/DAB+ Data logger
- Protected access to the device settings
- Headphone output with front panel level control
- SNTP for automatic synchronization of the built-in clock
- Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
- Professional AES/EBU Digital audio output
- LAN port for full TCP/IP remote control and monitoring
- Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels
- Alarm dispatch via E-mail, SNMP ver.2C and GPO
- Built-in WEB and FTP server
- Easy to use WEB interface
- Apple and Android devices support
- Firmware updates will ensure improved operation
- Accurate front-panel metering for local use
- Restore Factory Parameters option
- Easy Installation and Setup
The datasheet can be seen here
